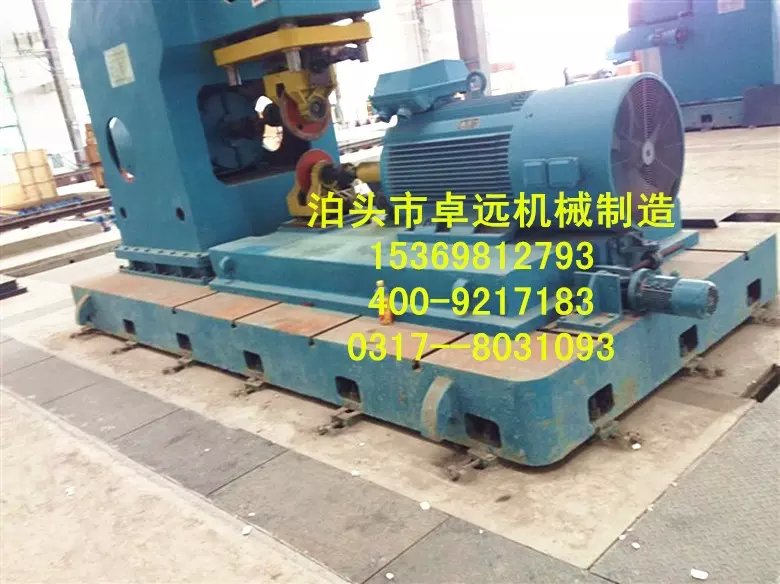

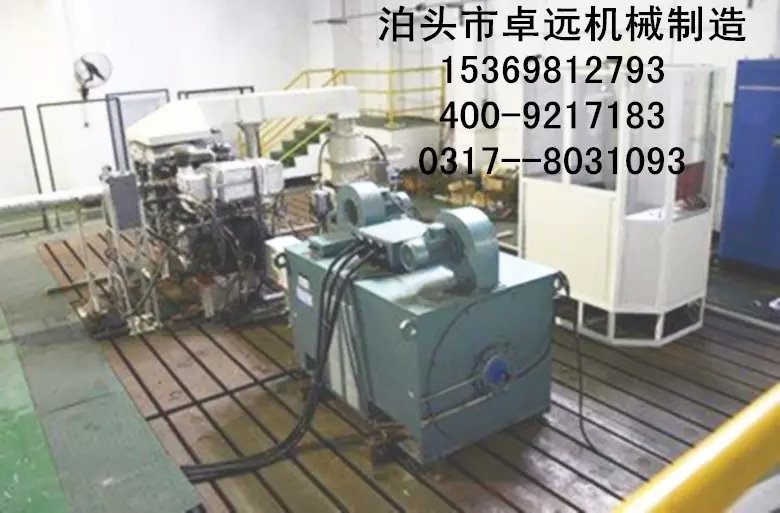

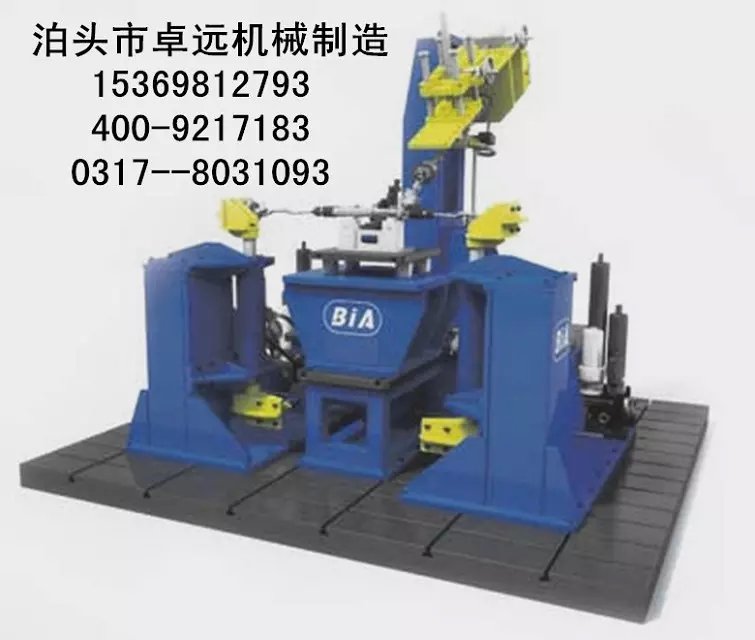

铁地板用途,测攻机试验平台应用中
时间：2016/1/13 8:32:43
浏览量：435
铁地板尺寸、数量及材质：外形尺寸3000×1500×130，数量为6组，每组12块，共计72块，材质为HT200号铸铁。
铁地板铸造几何尺寸按图纸要求进行，铸件任何面不准有夹渣、缩松、裂纹、重叠、气孔等缺陷（附铁地板加工图纸）。
铁地板在加工之前要进行回火时效处理，消除内应力；此过程要派人现场监督。
机械加工几何尺寸、公差、形状公差表面粗糙度按图纸要求加工。
铁地板每12块组成一个整体平台，平台整体平面度为0.4，地板与地板之间梯形槽的对称度为0.3，梯形槽之间底面应在一个平面上误差不大于0.3。
铁地板地脚螺栓直径为24mm，地下深度为300mm，灌浆孔￠70和铁地板平面调整孔￠70及地脚螺栓孔加封盖板。盖板表面与铁地板平面为同一平面，公差为：-0.1mm。
铁地板工作表面做刮研处理，非工作面做防腐处理。
Iron floor size, quantity and material: Dimensions 3000×1500×130, the number is 6 groups, 12 pieces in each group, a total of 72 pieces, the material is HT200 cast iron.
The geometrical dimensions of iron floor castings are carried out according to the requirements of the drawings. Defects such as slag inclusions, shrinkage, cracks, overlaps, and porosity are not allowed on any surface of the castings (with iron floor processing drawings).
The iron floor shall be subjected to tempering aging treatment before processing to eliminate internal stress; this process shall be sent to the site for supervision.
Machining geometry, tolerances, shape tolerances Surface roughness is machined according to the drawings.
Each 12 pieces of iron floor constitutes a whole platform, the overall flatness of the platform is 0.4, the symmetry of the trapezoidal groove between the floor and the floor is 0.3, and the bottom surface between the trapezoidal grooves should have an error of not more than 0.3 on one plane.
The iron floor anchor bolt has a diameter of 24 mm and a depth of 300 mm. The grouting hole 70 and the iron floor plane adjusting hole 70 and the anchor bolt hole are sealed. The surface of the cover plate is in the same plane as the plane of the iron floor with a tolerance of -0.1 mm.
The working surface of the iron floor is scraped and treated, and the non-working surface is treated with anti-corrosion treatment.
